AI Gmail Labeller

A Python app that uses your custom LLM prompt to label your Gmail!

Imagine having an AI assistant that automatically organizes your Gmail inbox by intelligently labeling incoming emails. That’s exactly what we’ll build in this tutorial.

Gmail Labeller

The complete app is available in our filter-gmails-example repository. The app has a frontend built with Next.js along with Supabase for authentication.

In this guide, we’ll focus on the Composio + OpenAI Agents part of the app.

Prerequisites

Creating Triggers for users

Triggers are a way to listen for events from apps. They act as a notification system for your AI applications, enabling your agents to respond dynamically to external events occurring within your apps.

In some cases, triggers require certain configurations to set the correct events. You can inspect and add these properties while enabling the triggers.

apps/backend/email_processor.py
1def create_trigger(
2 user_id: str,
3 connection_request: ConnectionRequest,
4 trigger_config: dict | None = None,
5):
6 """
7 Create a Gmail trigger for new messages.
8
9 Args:
10 user_id: The user ID to create the trigger for
11 trigger_config: Optional trigger configuration, defaults to monitoring INBOX
12
13 Returns:
14 The trigger creation response or None if failed
15 """
16 connection_request.wait_for_connection(timeout=30)
17 if trigger_config is None:
18 trigger_config = {
19 "interval": 1, # Check every minute
20 "labelids": "INBOX", # Monitor inbox only
21 "userId": "me", # Current authenticated user
22 }

Then the trigger can be created with the following code:

apps/backend/email_processor.py
1 response = composio.triggers.create(
2 user_id=user_id,
3 slug="GMAIL_NEW_GMAIL_MESSAGE",
4 trigger_config=trigger_config,
5 )
6
7 logger.info(f"Successfully created trigger for user {user_id}: {response}")

Listening for a trigger event

For local development, you can use ngrok to expose your local server to the internet.

$ngrok http 8000

Then you can set the ngrok URL in the trigger configuration.

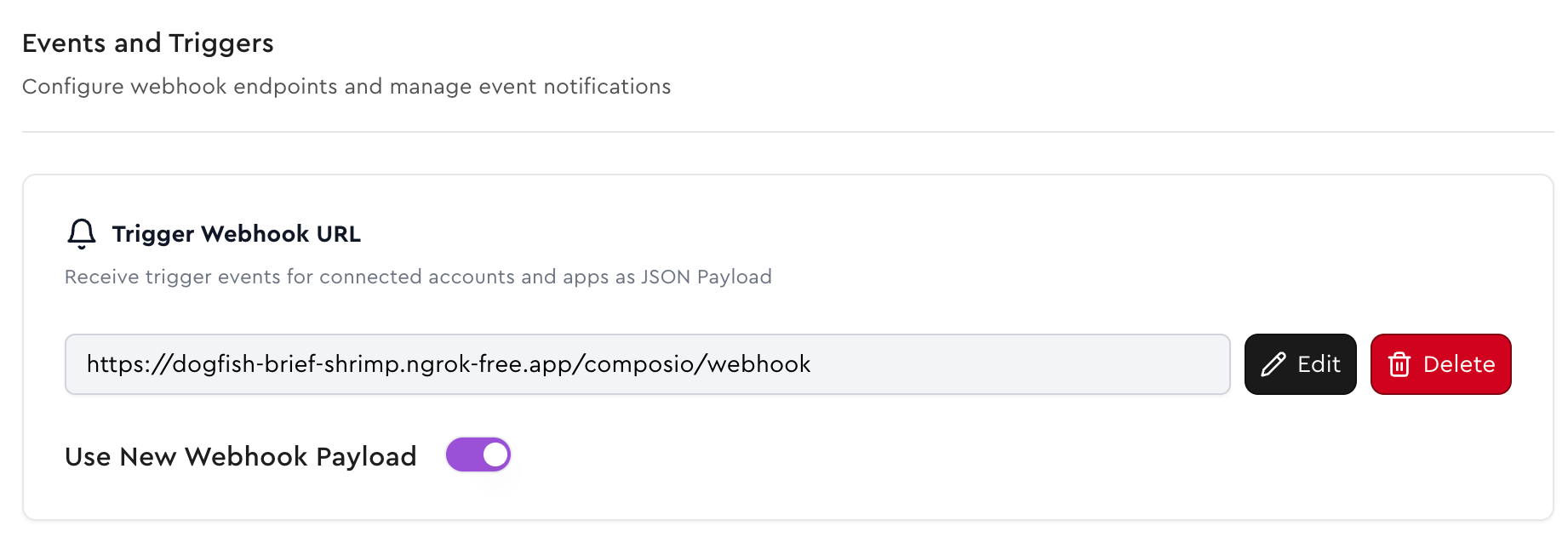

Trigger configuration

This is the main webhook endpoint for processing Gmail new message events.

Composio sends a POST request to the webhook endpoint /composio/webhook that contains the event data.

It is parsed and then the labeling method process_gmail_message is called through a FastAPI Background task.

apps/backend/main.py
1@app.post("/composio/webhook")
2async def listen_webhooks(
3 request: Request,
4 background_tasks: BackgroundTasks
5):
6 """
7 Main webhook endpoint for processing Gmail
8 new message events. This is the core webhook
9 labeling functionality.
10 """
11 # Verify webhook signature
12 # Check if this is a Gmail new message event
13 if (
14 webhook_data.get("type") == "gmail_new_message"
15 or "gmail" in webhook_data.get("type", "").lower()
16 ):
17 gmail_message = GmailMessage.from_composio_payload(
18 webhook_data
19 )
20 # Get the user's custom prompt or use default
21 default_prompt = (
22 initial_prompt or "Default email processing prompt"
23 )
24 user_prompt = get_user_prompt(
25 gmail_message.user_id, default_prompt
26 )
27
28 # Add email processing to background tasks
29 background_tasks.add_task(
30 process_gmail_message,
31 gmail_message,
32 user_prompt
33 )
34
35 logger.info(
36 f"Queued email {gmail_message.id} for processing"
37 )
38 return {"status": "received", "webhook_id": webhook_id}

Processing the mail using OpenAI Agents SDK

The process_gmail_message method is responsible for processing the email using the OpenAI Agents SDK.

apps/backend/email_processor.py
1async def process_gmail_message(message: GmailMessage, user_filter: str):
2 """
3 Process Gmail message with AI and apply labels.
4
5 Args:
6 message: The Gmail message to process
7 user_filter: The user's custom prompt/filter for email categorization
8
9 Returns:
10 bool: True if processing succeeded, False otherwise
11 """
apps/backend/email_processor.py
1 body_preview = (message.text_body or message.html_body or "")[:10000]
2 if body_preview:
3 logger.debug(f"Email body preview: {body_preview}...")
4 else:

We read the first 10k characters of the email body to pass it to the agent. This is done to avoid overwhelming or surpassing the token limits in case of really long emails.

apps/backend/email_processor.py
1 tools = composio.tools.get(
2 message.user_id,
3 tools=[
4 "GMAIL_ADD_LABEL_TO_EMAIL",
5 "GMAIL_MODIFY_THREAD_LABELS",
6 "GMAIL_PATCH_LABEL",
7 "GMAIL_REMOVE_LABEL",
8 "GMAIL_CREATE_LABEL",
9 "GMAIL_LIST_LABELS",
10 ],
11 )

user_filter is the user’s custom prompt from the database. We pass it to the agent along with the email body.

apps/backend/email_processor.py
1 reaper = Agent(
2 name="Gmail Reaper",
3 instructions=REAPER_SYSTEM_PROMPT,
4 tools=tools,
5 )
6
7 # Prepare the prompt with user filter and email details
8 email_content = message.text_body or message.html_body or "No content available"
9 prompt_details = (
10 f"{user_filter}\n\n## Email\n{email_content}\n## Message ID\n{message.id}"
11 )
12
13 logger.debug(
14 f"Running agent with prompt length: {len(prompt_details)} characters"
15 )
16
17 # Run the agent to process and label the email
18 result = await Runner.run(reaper, prompt_details)

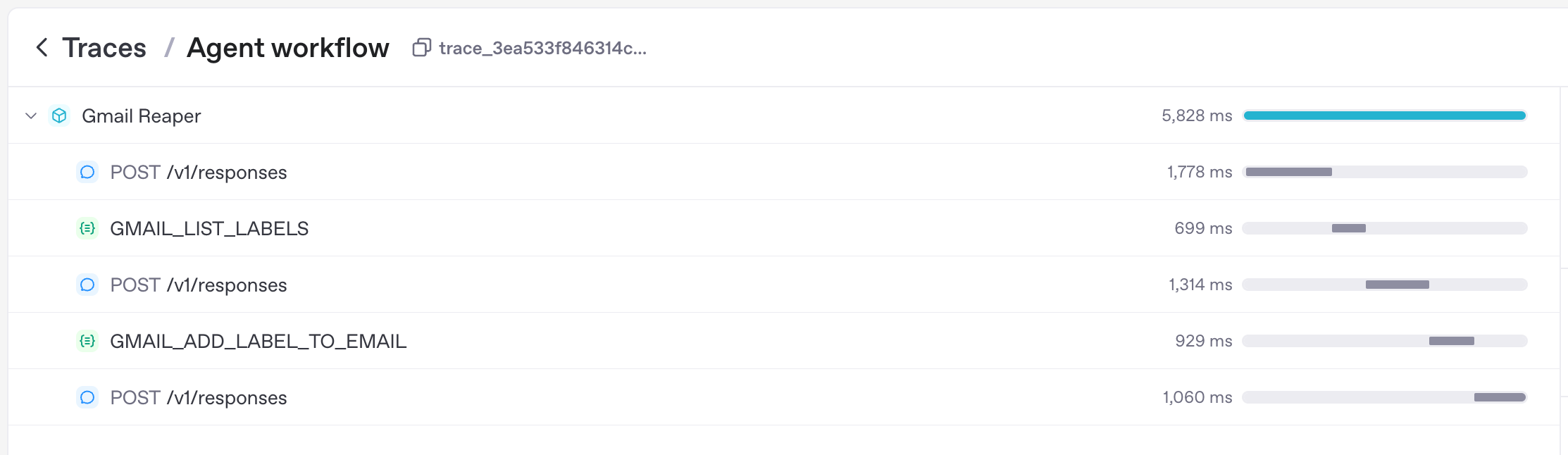

You can view the agent trace in OpenAI’s Traces Dashboard.

Gmail Agent Trace

Securing the webhooks!

It is important to validate the webhook signature to ensure the request is coming from Composio.

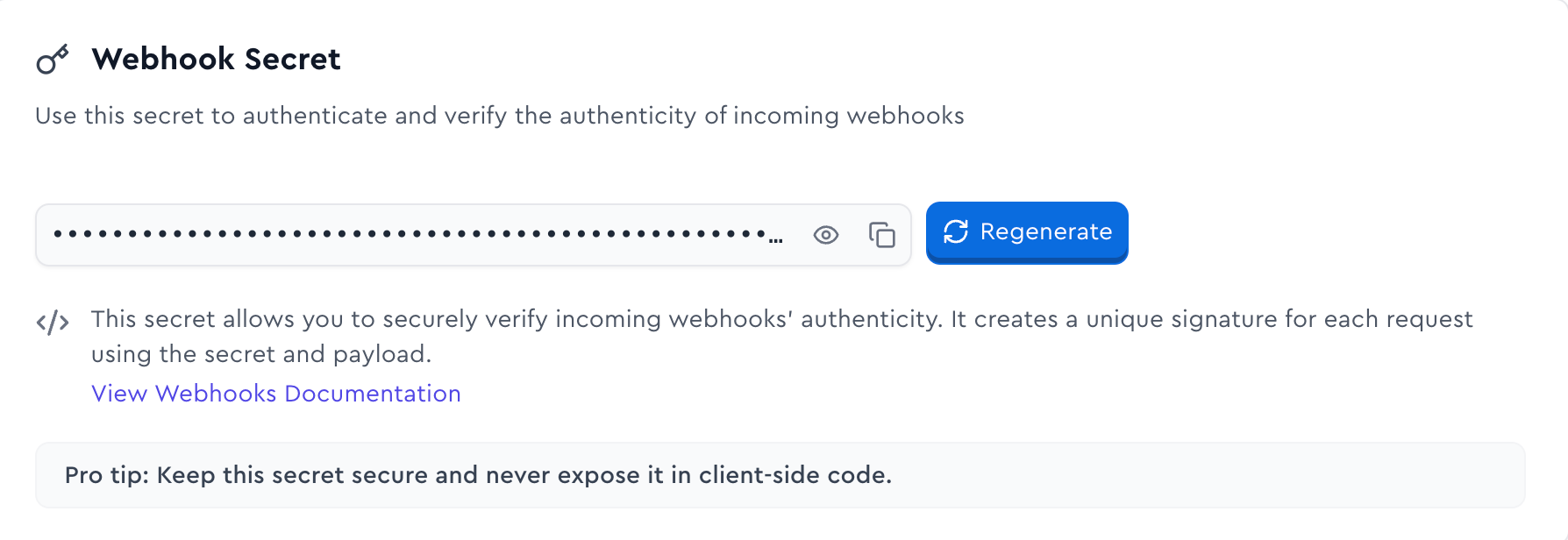

Generate and store the webhook signature in the environment variables.

Webhook Secret

The webhook signature is validated in the verify_webhook_signature function.

apps/backend/webhook.py
1async def verify_webhook_signature(request: Request) -> tuple[bytes, str]:
2 """
3 Verify the authenticity of a Composio webhook request.
4
5 Args:
6 request: The FastAPI request object
7
8 Returns:
9 tuple: (body bytes, webhook_id)
10
11 Raises:
12 HTTPException: If signature verification fails
13 """
14 # Get the raw body for signature verification
15 body = await request.body()
16
17 # Get the signature and timestamp from headers
18 signature_header = request.headers.get("webhook-signature", "")
19 timestamp = request.headers.get("webhook-timestamp", "")
20 webhook_id = request.headers.get("webhook-id", "")
21
22 # Verify webhook authenticity
23 if COMPOSIO_WEBHOOK_SECRET and signature_header:
24 # Extract the signature (format: "v1,signature")
25 if "," in signature_header:
26 version, signature = signature_header.split(",", 1)
27 else:
28 raise HTTPException(status_code=401, detail="Invalid signature format")
29
30 # Create the signed content (webhook_id.timestamp.body)
31 signed_content = f"{webhook_id}.{timestamp}.{body.decode('utf-8')}"
32
33 # Generate expected signature
34 expected_signature = hmac.new(
35 COMPOSIO_WEBHOOK_SECRET.encode(),
36 signed_content.encode(),
37 hashlib.sha256
38 ).digest()
39
40 # Encode to base64
41 expected_signature_b64 = base64.b64encode(expected_signature).decode()
42
43 # Compare signatures
44 if not hmac.compare_digest(signature, expected_signature_b64):
45 raise HTTPException(status_code=401, detail="Invalid webhook signature")
46
47 return body, webhook_id

In the /composio/webhook endpoint, we verify the webhook signature and then parse the request body. If the signature is invalid, we return a 401 status code.

apps/backend/main.py
1@app.post("/composio/webhook")
2async def listen_webhooks(request: Request, background_tasks: BackgroundTasks):
3 """
4 Main webhook endpoint for processing Gmail new message events.
5 This is the core webhook labeling functionality.
6 """
7 # Verify webhook signature
8 body, webhook_id = await verify_webhook_signature(request)

Inspiration

This example was inspired by an X/Twitter post by @FarzaTV.

We encourage you to check out the full app, fork it, build it, and make it your own! Reach out to sid@composio.dev for free credits ;)
